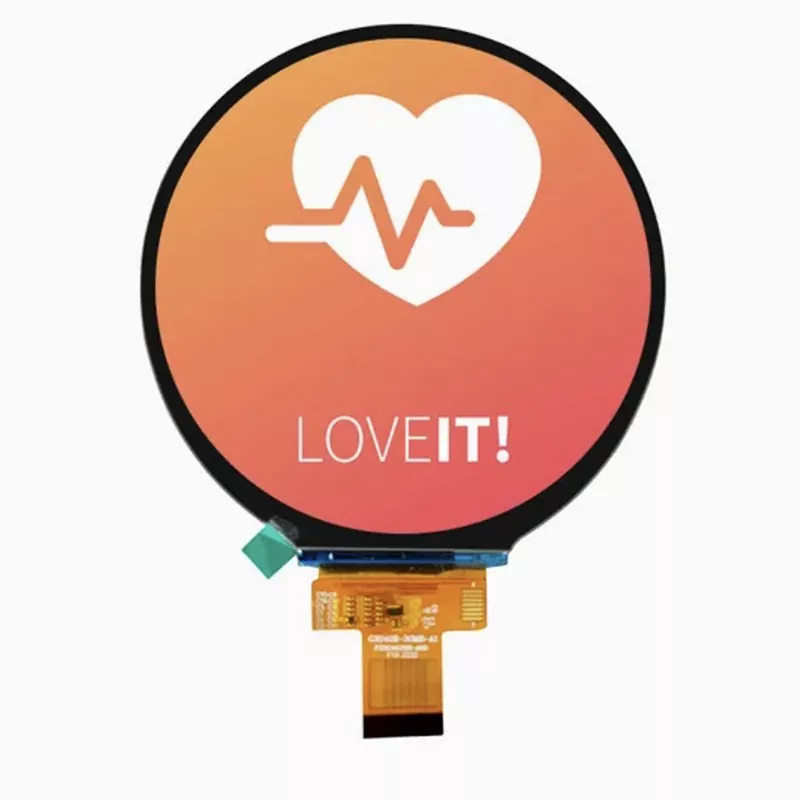

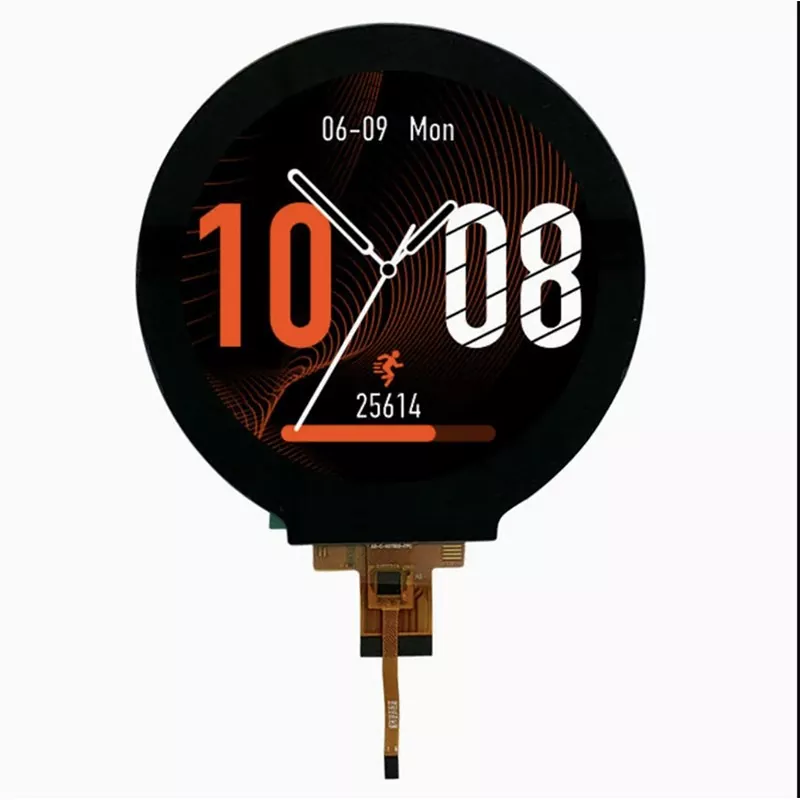

W.0 इन्च 7220x720 राउन्ड आईपीटी टेफ्ट मोड्युल

यो भिक्सारोक्स 4.0 ईन्च 7220x720 राउन्ड आईपीटी टेफ्ट मोड्युल एक उच्च-विश्वयुद्ध एक उच्च-विश्वसनीयता 4 इन्च टफड-LF-LFT-LFD-LCD मोड्युल हो। CREP 720 × 7220 rgb रिजोलुसन र 1 16..7 मिलियन र colors हरूको रूपमा प्रस्तुत गर्नुहोस्, जसमा कम्पन, फराकिलो दृश्यहरू सबै दिशामा कोणहरू हेरिरहेका छन्। एक पेशेवर TFFT मोड्युल निर्माता निर्माता र चीन मा आपूर्तिकर्ता, यो भिक्सोनिया 4 इन्च टीफ्ट मोड्युल कडाईका साथ उच्च अनुप्रयोग प्रदर्शन प्रदान गर्न को लागी अनुभवी छ।

मोडेल:VXT400MCCA-01

सोधपुछ पठाउनुहोस्

उत्पादन विवरण

TFT Module can be found everywhere in life, what makes this Victronix 4.0 inch 720x720 Round IPS TFT Module different from other manufacturers? At first, its 300 cd/m² brightness, 600:1 contrast ratio, and 68% NTSC color gamut ensure vivid imagery. Secondly, it not only has a MIPI DSI interface (4 data lanes) with touch support (I²C + interrupt/reset) that simplifies integration but also combines a TFT panel, driver IC (ICNL9707), FPC, and a 6S2P white LED backlight which lifetime is from 20,000 to 50,000 hours in an ultra-slim 2.09mm profile ensuring that it can be used for a long-lasting in different industrial situations. Besides, it meets RoHS standards and passes rigorous reliability tests (thermal shock, humidity, storage) to operate flawlessly in extreme temperatures (-20°C to +70°C) and withstand harsh storage conditions (-30°C to +80°C).

This Victronix 4 inch TFT Module is suitable for medical devices, factory automation, portable instruments, and embedded systems where stability, color accuracy, and compact design are paramount.

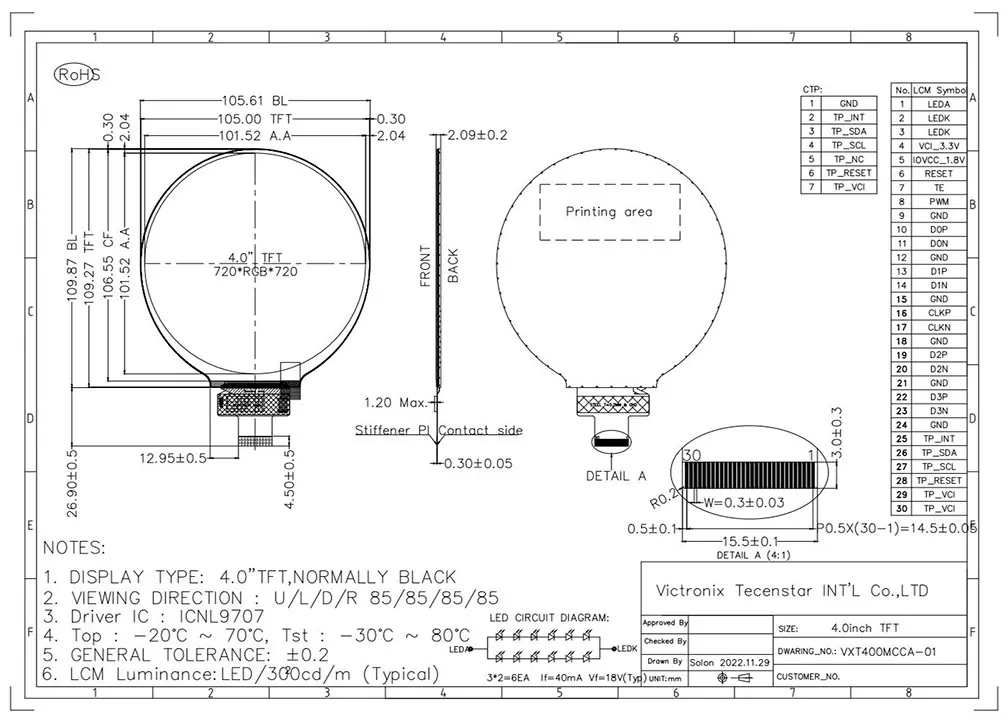

General Specifications

VXT400MCCA-01 4.0 inch 720x720 Round IPS TFT Module is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC, FPC,a back light unit . The 4.0¢ display area contains 720X(RGB)x720 pixels and can display up to 16.7M colors. This product accords with ROHS environmental criterion.

ltem	Contents	Unit	Note
LCD Type	TFT	-
Display color	16.7M		1
Viewing Direction	ALL	O'Clock
Operating temperature	-20~+70	℃
Storage temperature	-30~+80	℃
Module size	105.61X109.87X2.09	mm	2
Active Area(W×H)	101.52X101.52	mm
Number of Dots	720×720	dots
Controller	ICNL9707	-
Power Supply Voltage	3.3	V
Backlight	6S2P-LEDs (white)	pCS
Weight	---	g
Interface	MIPI	-
