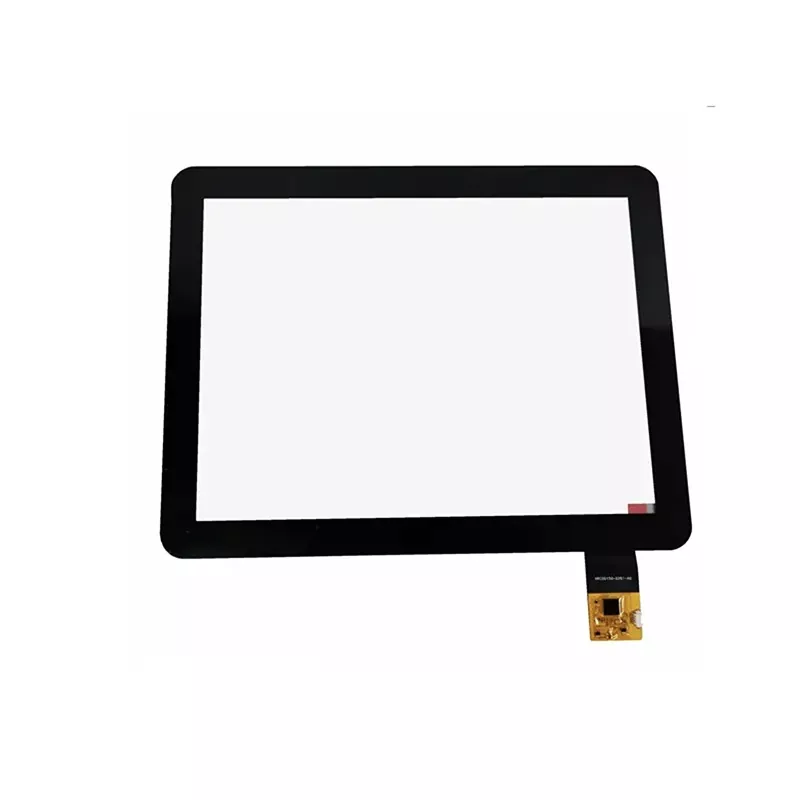

10.4 inch USB प्रक्षेपणत्मक टच स्क्रिन

What are the competitive advantages of the Victronix 10.4 inch USB Projected Capacitive Touch Screen in the competitive situation of TFT Module manufacturers? At first, its durable G+G construction ensures scratch resistance with a surface hardness rating ≥6H. Secondly, it has a high light transmission rate (≥88%) to provide clients with vivid and clear visual effects. Besides, this touch panel has passed rigorous reliability tests including high temperature/high humidity storage (60°C/90%RH, 96H), high/low-temperature storage (-30°C and 80°C, 120H each), and thermal shock cycling (-20°C, 70°C, 100 cycles) to provide customers with a high-quality product. In addition, It not only has excellent electrical performance with an operating voltage of 2.8-3.3V, low operating current (12mA~14.5mA), and a response speed of ≤12ms but also is built to withstand harsh conditions with an operating temperature range of -20℃ to +70℃ (≤90% RH) and storage from -30℃ to +80℃ (≤90% RH).

This Victronix 10.4 inch USB Projected Capacitive Touch Screen is suitable for industrial, medical devices, and many other consumer electronics. Its proven durability, excellent optical properties, and reliable operation make it the perfect choice for applications requiring both aesthetics and robust functionality.

· Hardness ≥6H: Scratch-resistant toughened glass ensures long-term use even in harsh environments.

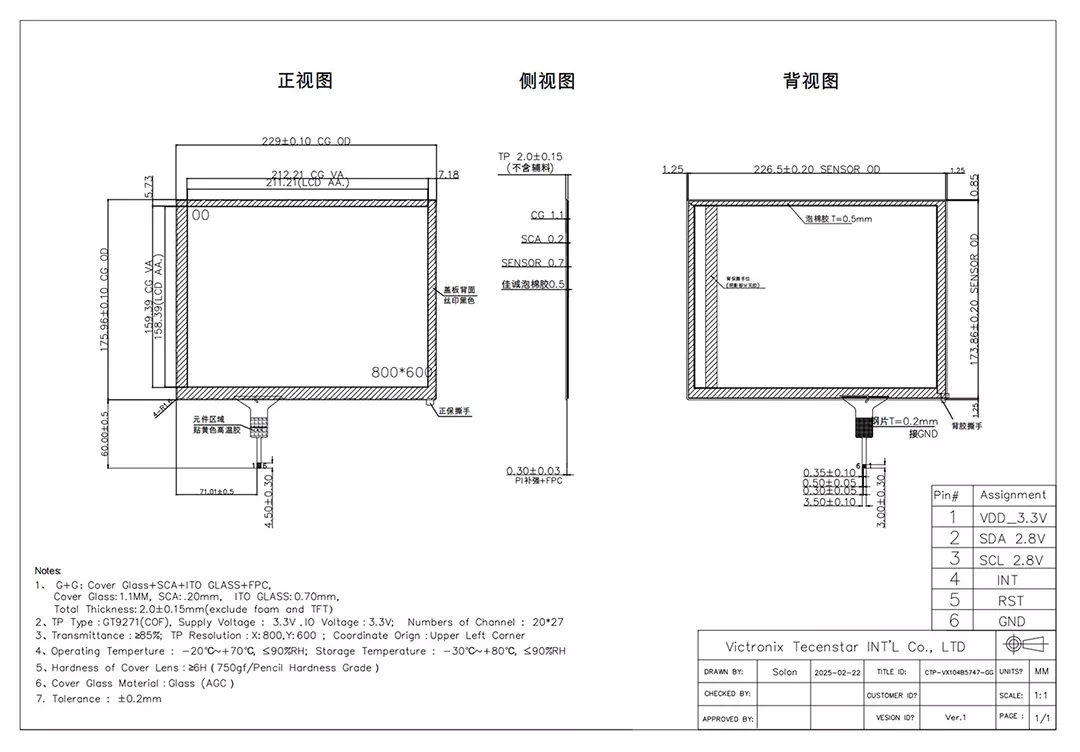

· Transmittance ≥85%: Crystal-clear view area (211.21mm x 158.39mm) enhances display visibility.

· 10-Point Multi-Touch: Supports intuitive multi-touch gestures for enhanced user interaction.

· I²C Interface: Simplified integration with host systems using the standard I²C protocol

· Flexible Voltage Range: Operates at 2.8–3.3V (VDD) and 2.8–3.3V (I/O), compatible with diverse electronic designs.

· ESD Protection: ±8kV (air) and ±2kV (contact) ESD immunity ensures stability in electrostatic environments.
